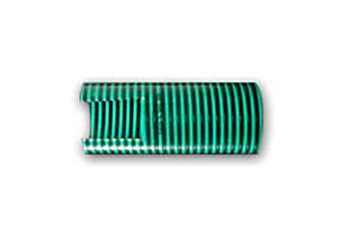

M.D.(Green)

Ideal for Medium Duty Suction & Delivery of water for irrigation purpose in agriculture, saline water, light acids, alkalies and other chemicals except solvents.

Specifications:

Nominal Size Diameter Bending Radius Pressure (at 30°C) Standard Lengths
Inches mm ID mm OD mm mm Working kg/cm² Bursting kg/cm² mtrs.
¾ 20 19.0 ± 0.5 23.6 ± 1.0 45 7 24 30/50
1 25 25.4 ± 0.5 30.0 ± 1.0 55 7 23 30/50
1¼ 30 31.8 ± 0.5 36.8 ± 1.0 75 6.5 20 30/50
1½ 40 38.0 ± 0.5 43.3 ± 1.0 95 5 16 30/50
2 50 50.8 ± 0.5 57.8 ± 1.5 122 4 16 30/45/50
2½ 65 63.5 ± 1.0 72.0 ± 1.5 160 4 16 30/45
3 75 76.2 ± 1.0 85.0 ± 1.5 272 3.5 15 30/36
4 100 101.2 ± 1.0 112.2 ± 2.0 290 3.5 11 15/18/30
